Permanent magnet assemblies are core components widely used in various industrial sectors, capable of maintaining a stable magnetic field without external power input. These assemblies primarily utilize permanent magnet materials such as Neodymium Iron Boron (NdFeB), Ferrite, Samarium Cobalt (SmCo), and Alnico, combined with materials like stainless steel, iron, aluminum, copper, and plastics, through processes such as press-fitting, bonding, embedding, and injection molding. They significantly enhance the performance and efficiency of various assemblies and equipment.
Types of Magnetic Assemblies

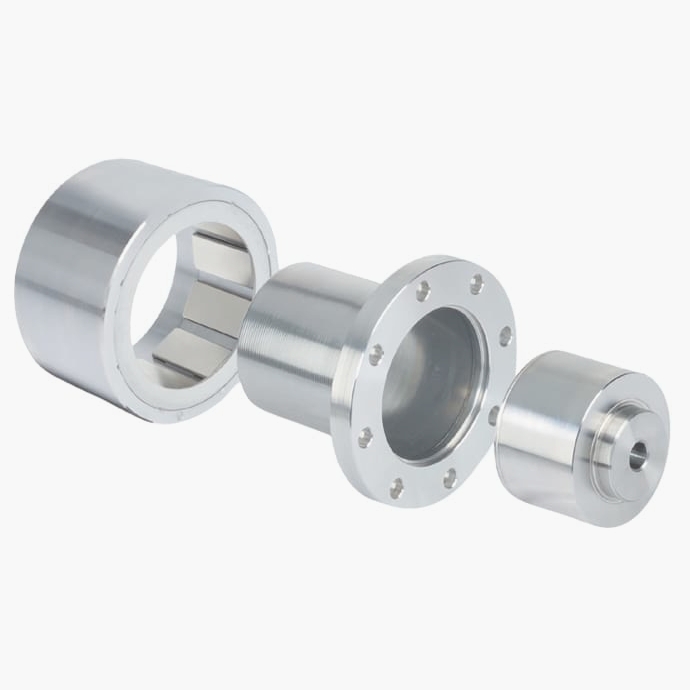

Magnetic Drive Assemblies
Primarily magnetic couplings, these consist of an inner rotor, outer rotor, and isolation sleeve. The inner/outer rotors are typically made of stainless steel or other metallic materials. Utilizing magnetic coupling principles, they achieve contactless power transmission, commonly used in zero-leakage fluid transfer applications such as magnetic drive pumps.

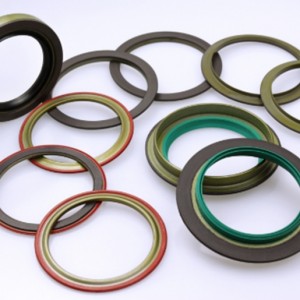

Magnetic Sensing Assemblies
These combine magnets with sensing elements such as Hall effect sensors to output electrical signals for position, angle, or speed detection. Some magnetic sensing assemblies have evolved into standard product lines, such as magnetic scales and ABS magnetic rings. Other non-standard magnetic sensors are often assemblies of magnets combined with metal or plastic components to achieve specific magnetic field requirements while meeting mechanical constraints.

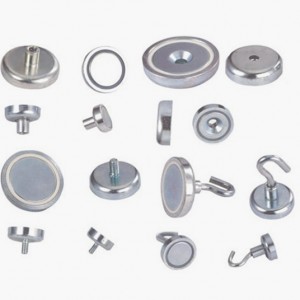

Magnetic Holding Assemblies
These are magnetic tools composed of magnets and metal parts, generating a specific holding force for attracting or fixing ferrous (steel) objects. These have evolved into various standard product lines: pot magnets, magnetic pick-up tools, permanent magnet lifters, magnetic sweepers, magnetic welding holders, magnetic office supplies, and magnetic bases.

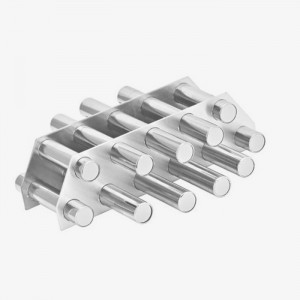

Magnetic Separation Assemblies
Utilizing the difference in magnetic force exerted on mineral particles in a non-uniform magnetic field, these assemblies separate magnetic from non-magnetic particles for ferrous material recovery or removal of ferrous impurities from non-magnetic materials. Standard product lines include magnetic bars, magnetic plates, magnetic grids, magnetic separators, classifiers, magnetic drums, magnetic separators, iron removal boxes, iron removal machines, and iron removal chutes.

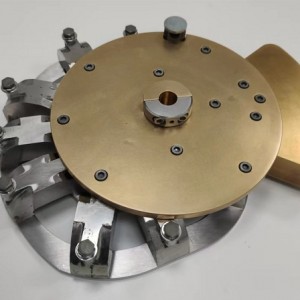

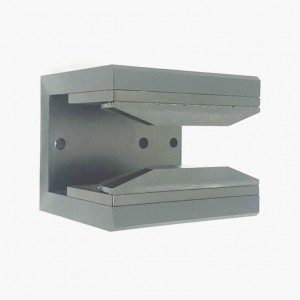

High Magnetic Field Assemblies
Through specialized magnetic circuit design, these create specific magnetic fields (strength, spatial distribution, uniformity) within a defined space, commonly used in applications such as nuclear magnetic resonance (NMR) and magnetization. Common magnetic circuit configurations include Halbach arrays or flux concentration structures.

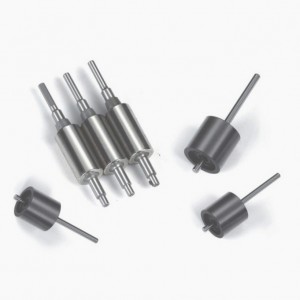

Motor Assemblies
These consist of magnets assembled with steel shafts to form rotor assemblies, or magnets assembled with steel housings to form stator assemblies. The rotor/stator is then assembled with other components to create a motor, achieving high-speed stable rotation and outputting the required torque.
Magnetron Sputtering Assemblies
These utilize a specific magnetic field distribution within a chamber to effectively control electrons during the sputtering process, improving sputtering performance. They are commonly used in magnetron sputtering coating applications, with common structures including planar targets, rotating targets, and circular targets.

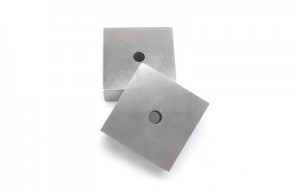

3C Assemblies
These involve the precise positioning and attraction of magnets to each other, used in conjunction with digital products and accessories such as mobile phones, laptops, tablets, wireless earbuds, and smartwatches for charging and attachment functionalities. (3C refers to "Computer, Communication, and Consumer electronics").

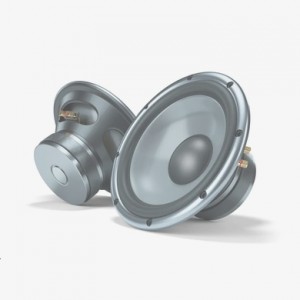

Electroacoustic Assemblies
These use the interaction of a current-carrying coil within a magnetic field, where rapid changes in current direction drive high-frequency vibrations of a cone, generating sound from a loudspeaker. The magnets used in electroacoustic assemblies are often disc-shaped or ring-shaped.
Common Types of Permanent Magnets
Neodymium Magnets
Neodymium magnets are among the strongest permanent magnets available. They are composed of an alloy of neodymium, iron, and boron (NdFeB) and are notable for their high magnetic pull strength relative to their size. These magnets are widely used in applications such as motors, hard disk drives, and magnetic resonance imaging (MRI) machines. However, they are also less resistant to heat and corrosion, which necessitates protective coatings like nickel.
Ferrite Magnets
Ferrite magnets, often referred to as ceramic magnets, are characterized by their low cost and good magnetic properties. They are composed of barium or strontium ferrite and are commonly used in a variety of applications, including refrigerator magnets, loudspeakers, and various electrical devices. Ferrite magnets are robust and can withstand higher temperatures compared to neodymium magnets, making them suitable for more demanding environments.
Samarium Cobalt Magnets
Samarium-cobalt magnets, categorized into two main types (SmCo 1:5 and SmCo 2:17), are known for their excellent temperature stability and resistance to corrosion. These magnets offer strong magnetic performance and are used in applications where high-performance and longevity are critical, such as in space exploration and high-end electric motors. While they are more expensive than neodymium and ferrite magnets, their durability justifies the cost in specialized applications.
Alnico Magnets
Alnico magnets, composed primarily of aluminum, nickel, and cobalt, have been in use since the 1930s. They exhibit high resistance to heat and can operate in extreme environments, making them suitable for applications in electric motors, sensors, and various industrial applications. Although they have a lower magnetic strength compared to neodymium and samarium-cobalt magnets, their stability under high temperatures is a significant advantage.
Design and Manufacturing
Design Process

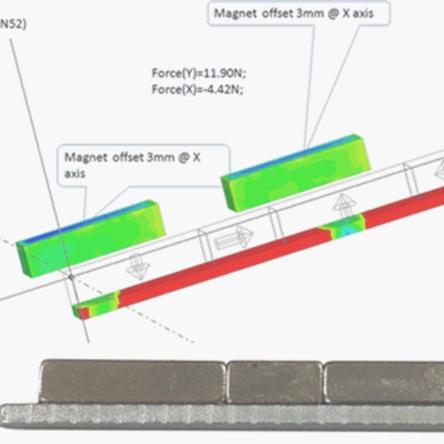

The design of magnetic assemblies must not only meet customer functional requirements but also consider material properties and manufacturing process feasibility. The design phase begins with selecting appropriate permanent magnets and mating metal or plastic components, optimizing them based on the product's application environment (e.g., temperature, humidity, magnetic fields). The design process often involves using 3D mechanical design software for structural design and electromagnetic simulation software (FEA) for magnetic field distribution modeling, ensuring optimal magnetic performance while considering the rationality of shape, size, weight, structure, and strength.
Manufacturing Techniques
The manufacturing process encompasses multiple stages from powder metallurgy to precision machining. To accelerate product validation and optimization, rapid prototyping techniques, such as high-precision CNC machining, are often employed for engineering iterative development and small-batch sample production. This allows for quick adjustments to the design or process, ensuring that the samples meet the requirements for magnetic performance, mechanical properties, and dimensional accuracy, ultimately optimizing the design in the shortest possible time. For complex-shaped magnetic assemblies and large-volume production, specialized tooling fixtures and magnetization fixtures are required.
Quality Assurance and Standards
Compared to the quality control of individual magnets, the requirements for permanent magnet assemblies are stricter and broader. In addition to conventional inspections for appearance, magnetic performance, and dimensional accuracy, specific tests for mechanical properties, environmental adaptability, dynamic balance, torque, magnetic field distribution and uniformity, magnetic holding force, output power, and electrical signals are required depending on the specific end application. This ensures that the products meet stringent design requirements and maintain excellent performance in practical applications.
