INTRODUCTION

AIC Magnetics is a pioneer in magnetic technology with more than 30 years of industry experience and expertise in the design, development, manufacture and service of high-performance permanent magnetic materials and assemblies. Our skilled team of industry experts and engineers enables us to provide comprehensive and customized solutions tailored to your magnetic material needs.



With our solutions, we have successfully served a variety of high-tech sectors, including semiconductors, new energy technology, electronics, industrial automation, aerospace, etc. At AIC Magnetics, we pride ourselves on being the trusted partner for all your magnetic solution needs, combining innovative engineering with proven reliability.

  • -
    Founded in 2002
  • -
    21 years experience
  • -+
    MORE THAN 100 PRODUCTS
  • -$
    MORE THAN 20 MILLION

products

Innovation

  • High Precision Magnets for Medical Devices

    High Precision Magnets for Medical Devices

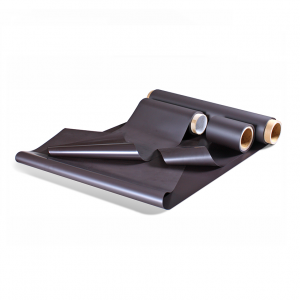

  • Flexible Magnets

    Flexible Magnets

  • Injection Molded Magnets

    Injection Molded Magnets

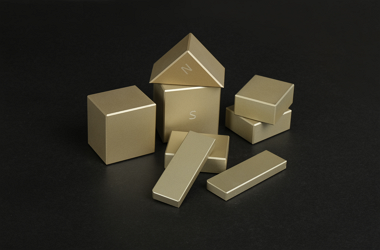

  • Neodymium Magnets

    Neodymium Magnets

    Physical Properties Br Temperature Coefficient -0.095~-0.105%/°C Density 7.3-7.5g/cm3 Curie Temperature 310-340°C Coercivity Temperature Coefficient -0.45~-0.60%/°C Vickers-hardness 600HV Electrical Resistivity 114μΩ·cm  Across Transfiguration Coefficient 0.24 Break Strength 8.0Kgf/mm2 Bending Strength 25kgf/mm2 Thermal Expansion Coefficient 4×10-6/°C Specific Heat 0.12Kcal/Kg Stiffness 0.64N/m2 The Conduction Coefficient ...

  • Samarium Cobalt Magnets

    Samarium Cobalt Magnets

    Physical Properties   Density Curie Temperature Vickers Hardness Compress Strength Electrical Resistivity Bend Strength Tensile Strength Thermal Expansion Coefficient g/cm3 K MPa MPa Ω·cm MPa MPa 10-6/℃ SmCo (1:5) 8.1-8.3 1000 450-500 1000 5-6×10-5 150-180 400 //6 ⊥12 SmCo (2:17) 8.3-8.5 1100 550-600 800 8-9×10-5 130-150 350 //8 ⊥11 Magnetic Properties Material Grade Br Hcb Hcj (B...

  • Hard Ferrite Magnets

    Hard Ferrite Magnets

    Magnetic Properties Grade Br Hcb Hcj  (BH)max Tw Equivalent mT KG KA/m KOe KA/m KOe KJ/m3 MGOe °C Y10T 200~235 2.0~2.35 125~160 1.57~2.01 210~280 2.64~.52 6.5~9.5 0.8~1.2 ≤250 IEC~7/21 Y20 320~380 3.2~3.8 135~190 1.70~2.38 140~195 1.76~2.45 18.0~22.0 2.3~2.8 ≤250   Y22H 310~360 3.1~3.6 220~250 2.77~3.14 280~320 3.52~4.02 20.0~24.0 2.5~3.0 ≤250 IEC~20/28 Y23 320~370 3.2~3.0...

  • Bonded Magnets

    Bonded Magnets

    Neodymium-Iron-Boron Magnets Neodymium-Iron-Boron Magnets Magnetic properties Neodymium magnets have higher remanence, much higher coercivity and energy product, but often lower Curie temperature than other types. Neodymium is alloyed with terbium and dysprosium in order to preserve its magnetic properties at high temperatures.   More information of Neodymium Magnets please check our resource center. Dimensions Because of the manufacture equipments constraint, there is a...

  • AlNiCo Magnets

    AlNiCo Magnets

    AlNiCo Magnet AlNiCo is a sophisticated alloy primarily composed of aluminum, nickel, cobalt, copper, and iron. It is available in two distinct forms: cast and sintered, each shaped by unique manufacturing processes. AlNiCo magnets are highly valued in applications where stringent requirements for high-temperature stability are paramount, particularly in the fields of instrumentation and electric motor engineering. One of AlNiCo’s notable strengths is its impressive resistance to corros...

  • Motor Magnetic Strips

    Motor Magnetic Strips

    Advantage Magnetic Properties Grade YZT13N YZT13HNF YZT13 YZT14 Material NBR CPE Br Gs 2400~2600 2400~2600 2400~2600 2550~2750 mT 240~260 240~260 240~260 255~275 Hcb Oe 2150~2450 2150~2500 2150~2450 2100~2400 kA/m 171~195 171~199 171~195 167~191 Hcj Oe 2800~3500 2800~3800 2800~3500 >2300 kA/m 223~279 223~303 223~279 >183 (BH)Max MGOe 1.45~1.65 1.45~1.65 1.45~1.65 ...

  • Precision Magnetic Assemblies for PVD Equipments

    Precision Magnetic Assemblies for PVD Equipments

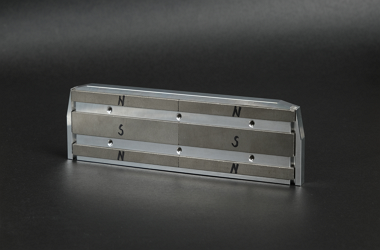

  • Custom Magnetic Assemblies

    Custom Magnetic Assemblies

  • Carbon Fiber Sleeve Magnetic Assemblies

    Carbon Fiber Sleeve Magnetic Assemblies

  • Holding Magnets

    Holding Magnets

    Overview Flat pot magnets, also called pot magnets or holding magnets, are manufactured by magnets assembled with specific steel cover. The magnets can be Neodymium, SmCo, Alnico, and Hard Ferrite magnets. Flat pot magnets are used in almost all branches of industry as handling aids for holding, clamping and fixing of tools. Our pot magnets can offer an extensive range of pull force, from small lifting 3N up to large lifting up to 1200N. They exist in a wide range of diameters and height...

  • Magnetron Sputtering Assemblies

    Magnetron Sputtering Assemblies

    Parts Assembly & Inspection Following standard operating procedures, individual parts are assembled into a cohesive whole. After assembly, according to operational requirements, multiple tests are carried out, including visual inspection, surface magnetic field testing, helium leak testing, hydraulic pressure testing, and insulation checks. Features • High Efficiency: Leveraging cutting-edge magnetic material control technology, our magnetic assemblies enhance the uniformi...

  • Magnetic Separator

    Magnetic Separator

    Magnetic Rod Magnetic Plate Magnetic Grid

  • Magnetic Rotor

    Magnetic Rotor

    Stator Assembly The stator assembly consists of a casing and magnets, where the magnets are either bonded or mechanically attached to the casing. Rotor Assembly The rotor assembly is composed of shafts, magnets, balance blocks, and protective sleeves. The magnets are attached or mechanically secured to the shaft, with balancing blocks and protective sleeves added as needed.
